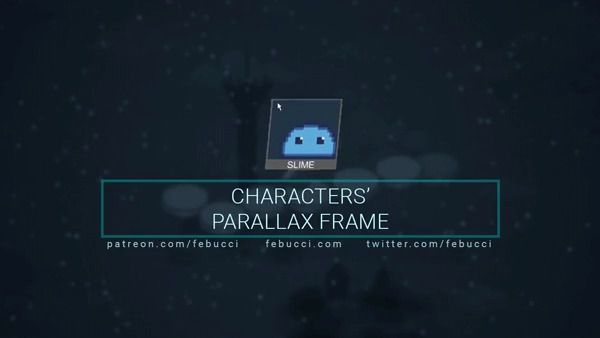

Show Characters inside cards (UI parallax)
Learn how to create a UI parallax effect in Unity by using masks and a simple script. This effect can be used to show characters behind a card... Read More!
Here’s how to create a really simple parallax effect in Unity, in this case in the game’s UI.
- Check if the mouse is inside the Rect, then rotate it based on its distance from the centre.
- Setup the Character’s frame adding what you prefer;I’ve added a Mask (so the character doesn’t go outside the panel when rotating), a Text and an Image.
- To create the “Parallax” effect while the panel rotates, move the characters’ image (or the element where you want the effect) backwards/forward. On my example the Z value of the Slime’s transform is set to -100.
- Reset the target rotation if the mouse is outside the rect and rotate it smoothly.
- I’m using the function AngleLerp, because if you try to use Vector3.Lerp etc, the transition doesn’t work properly and the angle messes up.
Code
using UnityEngine;
[RequireComponent(typeof(RectTransform))]
public class ParallaxPanel : MonoBehaviour
{
//Set to 0 if you want don't want it to rotate along this axis
public float y_maxRot;
//Set to 0 if you want don't want it to rotate along this axis
public float x_maxRot;
//Speed for the rotation
public float speed;
RectTransform rect;
//The rect we want to rotate
public RectTransform rectToRotate;
private void Awake()
{
rect = GetComponent<RectTransform>();
}
//Our target eulerangles rotation
Vector2 targetEulerAngles = Vector3.zero;
/// <summary>
/// Check each frame where the mouse is and rotates the panel
/// P.S. if you have multiple panels, use a list of "Panels classes" and use only one update, it's better for performance
/// You could also look for UI methods from the EventTrigger component
/// </summary>
private void Update()
{
//Difference between the mouse pos and the panel's position
Vector2 diff = (Vector2)transform.position - (Vector2)Input.mousePosition;
//If the mouse is inside the rect/panel [...]
if (Mathf.Abs(diff.x) <= (rect.sizeDelta.x / 2f) &&
Mathf.Abs(diff.y) <= (rect.sizeDelta.y / 2f))
{
targetEulerAngles = new Vector3(
//Rotates along the X axis, based on the Y distance from the centre
x_maxRot * -Mathf.Clamp(diff.y / (rect.sizeDelta.y/2f), -1, 1),
//Same thing, but along the Y axis (so, depends on the X distance)
y_maxRot * Mathf.Clamp(diff.x / (rect.sizeDelta.x/2f), -1, 1),
//No rotation along the Z axis
0);
}
else //Mouse is outside the rect, target euler is zero
{
targetEulerAngles = Vector3.zero;
}
//Lerps the rotation
rectToRotate.eulerAngles = AngleLerp(rectToRotate.eulerAngles, targetEulerAngles, speed * Time.deltaTime);
}
//Lerps two angles (using Mathf.LerpAngle for each axis)
public static Vector3 AngleLerp(Vector3 StartAngle, Vector3 FinishAngle, float t)
{
return new Vector3(
Mathf.LerpAngle(StartAngle.x, FinishAngle.x, t),
Mathf.LerpAngle(StartAngle.y, FinishAngle.y, t),
Mathf.LerpAngle(StartAngle.z, FinishAngle.z, t)
);
}
}
